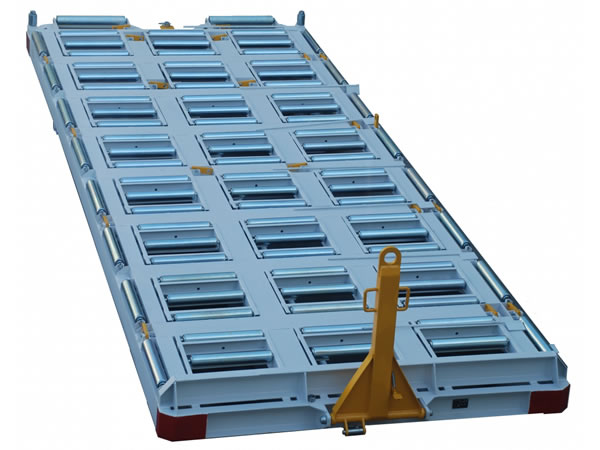

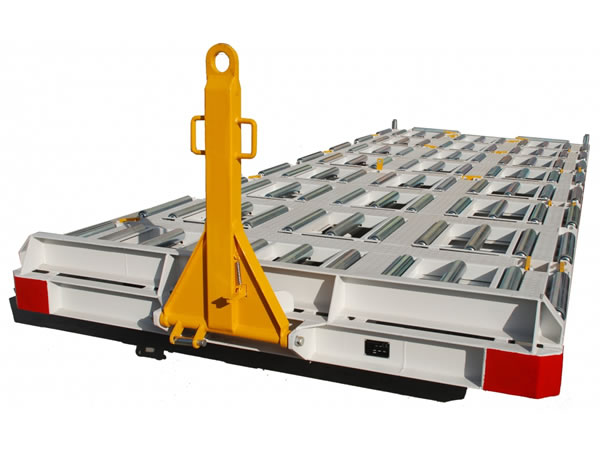

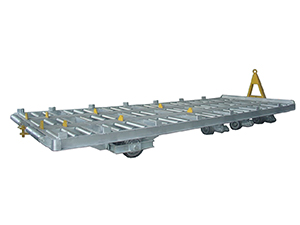

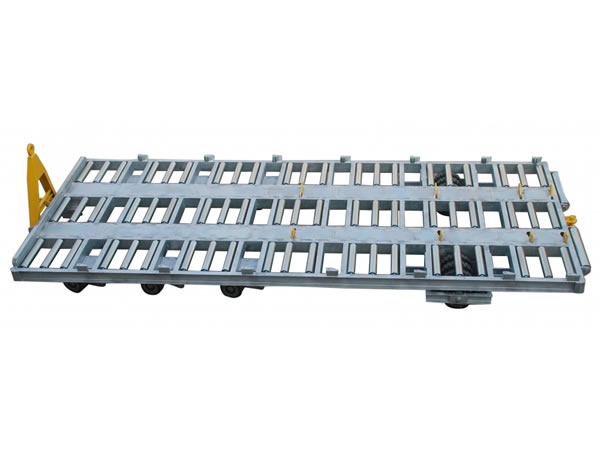

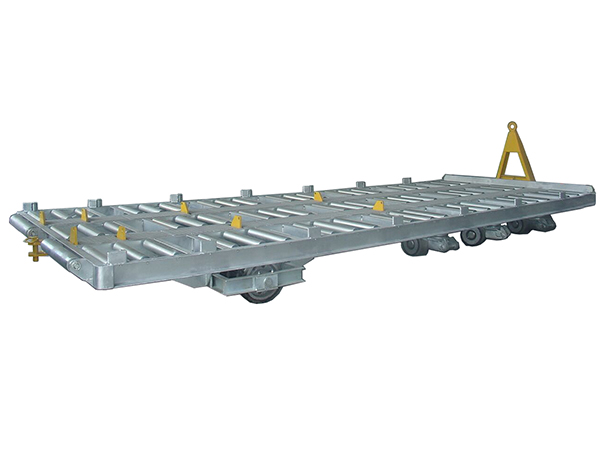

20FT Cargo Pallet Dolly

Cargo Dollies/ Container Dollies

Features
1) This pallet dolly is entirely made of high-quality steel. It is sturdy and durable, and it can load as much as 18000kgs. MIG welding technology makes the dolly beautiful and durable.
2) This dolly can break in time as soon as the tow-bar is upright.
3) The wheel is movable to adjust the direction freely. This ensures flexible operation.
4) The dolly is easy to maintain.

Custom service
1) We can print the logo following clients’ requirements.
2) This pallet dolly surface can be painted or galvanized.

We provide 20FT cargo pallet dolly with the following specifications.

Overall dimension	7983mm x2720mm x570mm
Working platform size	36496mm x 2720mmx520mm
Roller bed height	510mm – 520mm
Payload	18000kgs
Own weight	3200kg
Max. Towing speed	25 km/h
Tyre	Front wheel:266x160 solid tyre; Rear wheel: 400x133 solid tyre
Loading	End loading

Overall dimension	8155mm x2643mm x611mm
Working platform size	6910mm x2643mmx536mm
Roller bed height	536mm
Payload	18000kgs
Own weight	3500kg
Max. Towing speed	20 km/h
Tyre	Front wheel: 266x160 solid tyre; Rear wheel: 400x133 solid tyre
Loading	Long sides loading or end loading with the indexing roller cells
