HD-LS40 Aircraft Lavatory Service Truck

HD-LS40 Aircraft Lavatory Service Truck

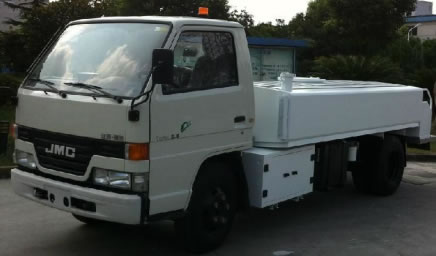

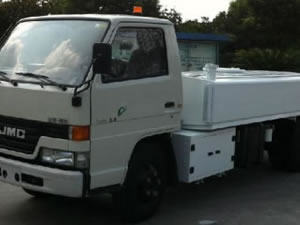

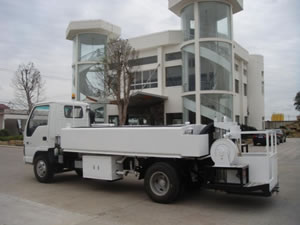

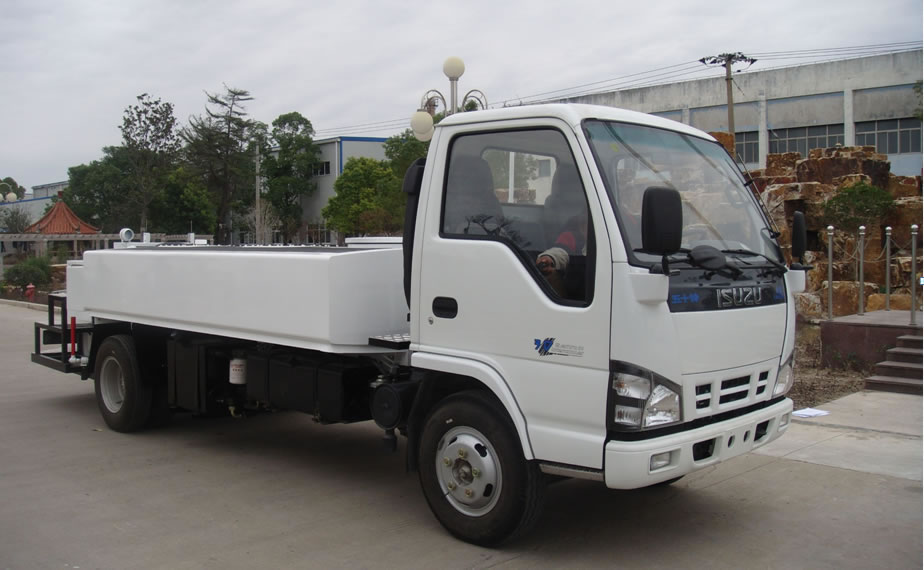

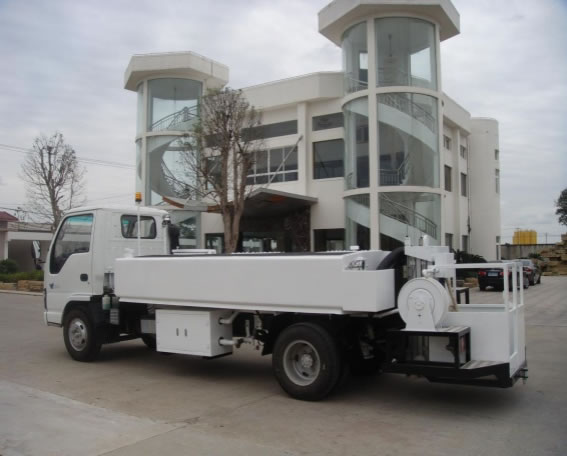

The HD-LS40 aircraft lavatory service truck is airport ground equipment designed to provide services for the discharge and cleaning of aircraft toilet sewage systems.

This service truck is widely used with Airbus A300, A310, A320, A330, A340, Boeing B727, B737, B747, B767, B777 and COMAC C919.

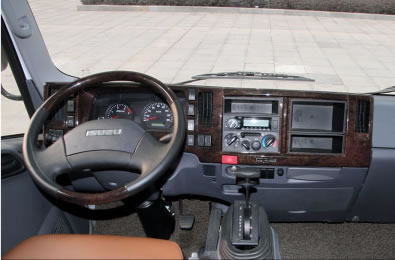

The lavatory truck is composed of the class II chassis (chassis for the cab), water tank assembly, sewage system, water supply system, tail frame assembly, lifting platform, hydraulic transmission system, and electrical system.

Technical Specifications of Lavatory truck
Parameter Configuration1 LS40A(JMC/GB4/3m³)/MT Configuration2 LS40B (JMC/GB4/3m³)/MT Configuration3 LS40C (600p/GB5/4m³)/MT) Configuration4 LS40D (700p/GB 4/4m³/MT) Configuration5 LS40E (700p/GB5/4m³/AT)
Engine Manufacturer JiangLing Engine Co , Ltd JiangLing Engine Co , Ltd ISUZU (ChongQing) Engine Co., LTD ISUZU (ChongQing) Engine Co., LTD ISUZU (ChongQing) Engine Co., LTD
Model JX493ZLQ4 JX493ZLQ5 4KH1CN5HS 4HKI-TCG40 4KH1-TC51
Power(KW) 80 85 96 141 140
Water Tank Volume(L) 2700 3000 4000 4000 4000
Clear Water Tank Volume(L) 1000 1000 1300 1300 1300
Sewage Tank Volume(L) 2000 2000 2700 2700 2700
Recycled Water Tank Volume(L) 200 200 240 240 240
Water Flow(L/min) 136 136 180 180 180
Water Pressure (M pa) 0.44 0.44 0.3~0.5 0.3~0.5 0.3~0.5
Curb Weight(kg) 3600 3500 3450 4550 4600
Boundary Dimension (Length x Width x Height)(mm) 6800X2150X1900 6800X2150X1900 6900x2100x2160 7310x2200x2360 7320x2170x2410
Maximum Speed(km/h) 40 40 80 80 80
Under-pan Manufacturer JMC Motor Co., LTD JMC Motor Co., LTD ISUZU Motor Co., LTD ISUZU Motor Co., LTD ISUZU Motor Co., LTD
Model JX1040TG24 JX1062TPG25 QL1070A5KAY QL11009KARY QL1100A8PAY
Under-pan Wheel Base 3360 3360 3815 3815 3815
Platform Lifting Height (mm) 400-3000 400-3000 400-3000 520-3000 520-3000
Ground Clearance 200 200 180 180 180
Water Tank Material/Thickness (mm) S31603/3mm S31603/3mm S31603/3mm S31603/3mm S31603/3mm
Channel Circular Diameter (mm) 12800 12800 15500 17000 17000
Engine Emission GB 4 GB 5 GB 5 GB 4 GB 5
Gearbox Model/ Gear Model JC528T8(5 Forward Gear 1Reverse Gear ) JC528(5 Forward Gear 1Reverse Gear ) MSB-5SM(5 Forward Gear 1Reverse Gear ) MLD-6Q(5 Forward Gear 1Reverse Gear ALLISON1000 / (AT/2 Forward Gear 1Reverse Gear )
Features of Lavatory truck
  • Lifting platform

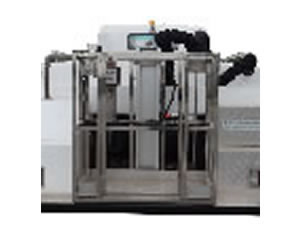

    The lifting work platform is made of newly developed aluminum alloy profiles, with single-stage hydraulic cylinder for its lifting. This lifting platform facilities implementation of lavatory service with a lifting range from 400mm to 2800mm, which is applicable to various active airplanes listed above.
  • Water Tank
    1)The water tank is made of 3mm thick 304 stainless steel plate. The water tank is composed of a flushing tank (middle), a sewage tank (back), a vacuum pump circulating tank (front) and a tank buffer. Although the three tanks are integrated, but they are completely isolated.
    2)The water tank can be turned into an insulation water tank upon customer request.
    3)The water tank and the truck frame are connected and attached using a rubber pad, which reduces truck vibration during movement.
  • Hydraulic Motor / Drive System

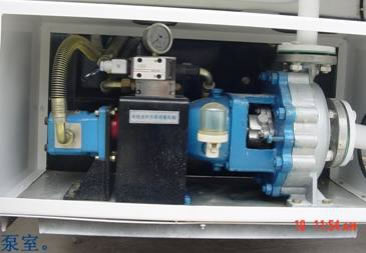

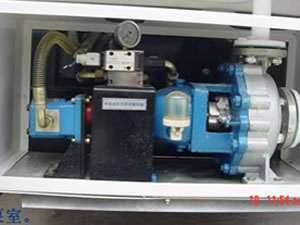

    1)The vacuum pump sewage system driven by hydraulic motor offers cleaning services in a convenient, efficient manner for aircraft sewage tanks.
    2)The stainless steel pump is driven by the hydraulic motor, and supplies cleaner for the aircraft sewage truck and lavatory service truck.

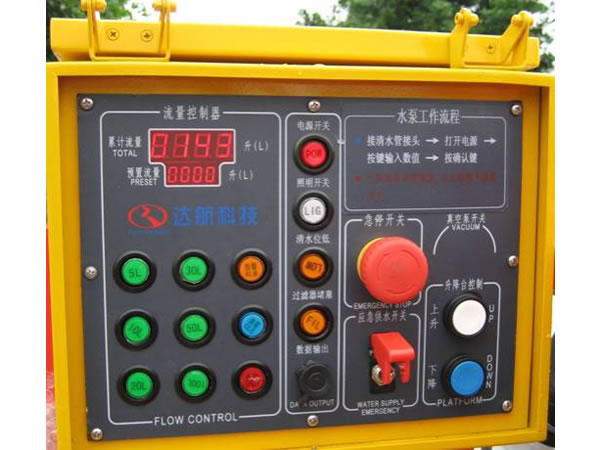

  • All operating switches, plugs, and circuit boards are all water-resistant .
