Aircraft Ground Power Unit
The HD-GPU90/120/140 air ground power unit is equipped with a brushless intermediate frequency alternator driven by diesel engines, and are used to provide power for both military and civil aircraft.

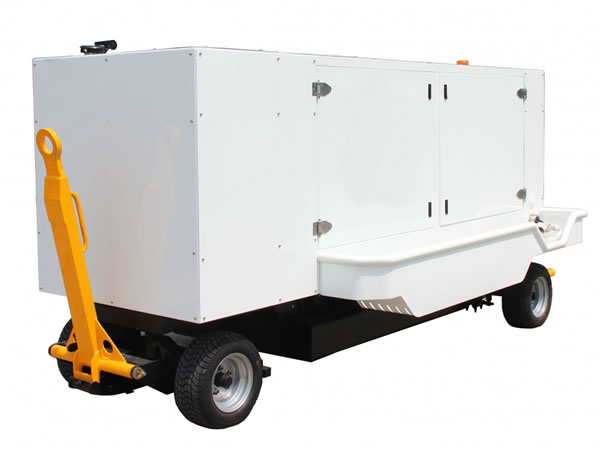

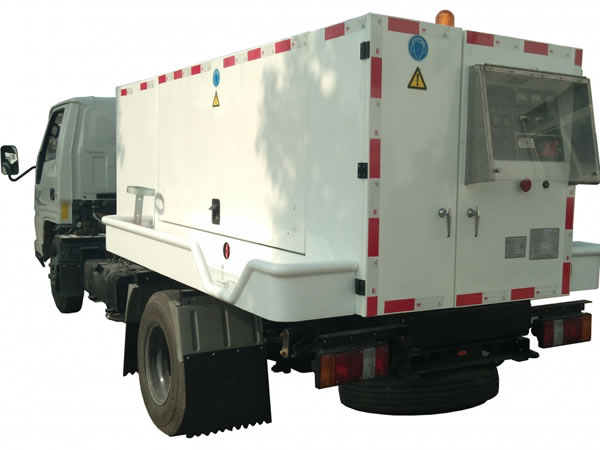

The air ground power unit has a truck-trailer chassis loading mode (PT drag-and-drop power car) and a vehicle chassis loading mode (PQ chassis power car). The manufacturing and use of the GPU conforms to both civil aviation standards and AHM.
Technical Specifications of Aircraft Ground Power Unit
Feature of Aircraft Ground Power Unit
|Model ||GP90PT GP90PQ |
|GP120PT GP120PQ ||GP140PT GP140PQ |
|Apparent Power ||90KVA ||120KVA ||140KVA |
|Power Factor ||0.8 ||0.8 ||0.8 |
|Active Power ||72KW ||96KW ||112KW |
|Rated Current ||260AMP ||346AMP ||404AMP |
|Rated DC Voltage ||115/200 V ||115/200 V ||115/200 V |
|Frequency ||400 Hz ||400 Hz ||400 Hz |
|DC OUTPUT ||28.5V (V-A) ||28.5V (V-A) ||28.5V (V-A) |
|Boundary Dimension (Length x Width x Height) ||3950*1926*1880。 ||3950*1926*1880 ||3950*1926*1880 |
|Maximum Device Weight ||2650kg ||2700kg ||2800kg |
|Maximum Engine Power ||125KW ||140KW ||162KW |

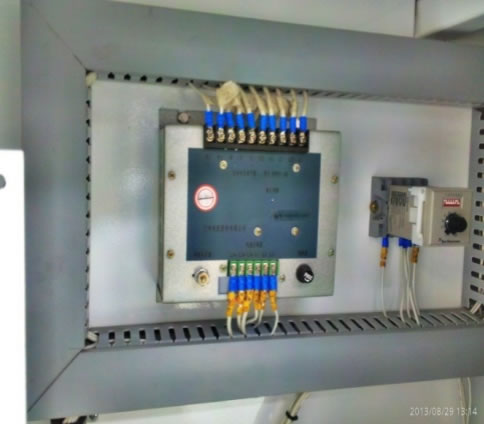

Parts of Aircraft Ground Power Unit

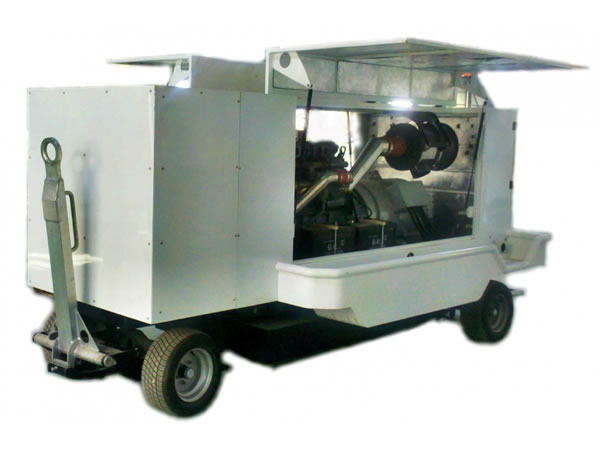

- This air ground power unit can check and repair all unit parts with no need to dismantle the encloser, due to its simple structure.

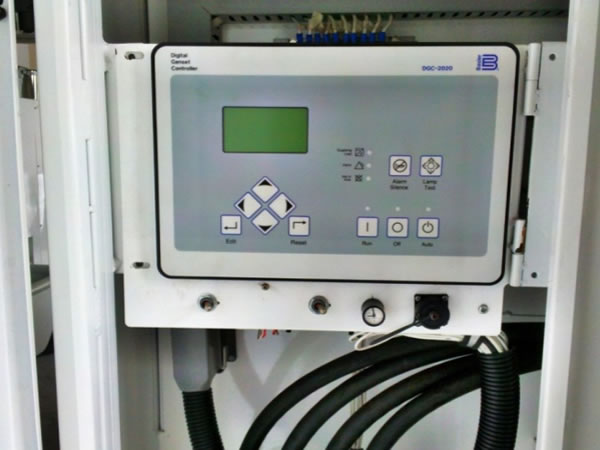

- The air ground power unit features a simple and convenient adjustment, without having to enter the GPU adjustment coefficient, due to the vehicle body’s rear mounted control panel.
- This air ground power unit has a slot on the left and right edges for cable placement.

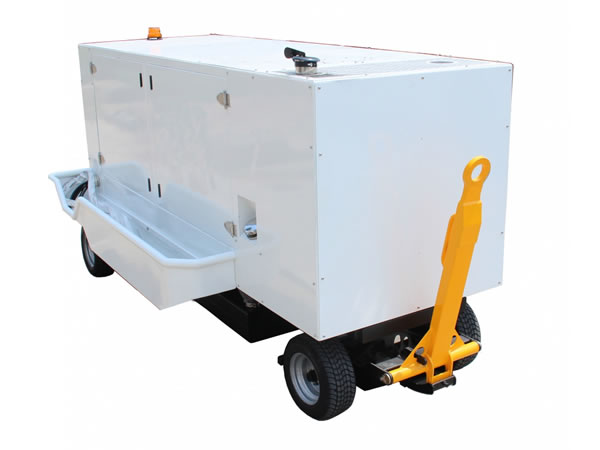

- This aircraft power supply operates the front wheel mechanical brake with the use of a drawbar.
- The GPU fuel tank has a 300 liter capacity, ensuring it can run continuously for up to 8 hours.
- AC power unit wheels are light-weight with a small turning radius./li>
- TThe shell of the GPU satisfies ICAO and has a corrosion resistance to PAO, mineral and other lubricants. It also uses ICI “3C3B” technology from the UK (2 coats of primer, finish).
- The generator set uses a self-made chassis that meets civil aviation industry standards.
- Optional chassis :ISUZU 600P /GB 4、GB5 Chassis、JMC GB4 Chassis
- Optional engines: DCEC ISBE4&DEUTZ, etc.

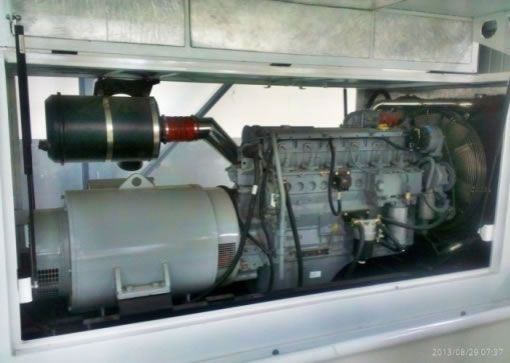

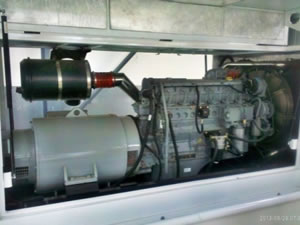

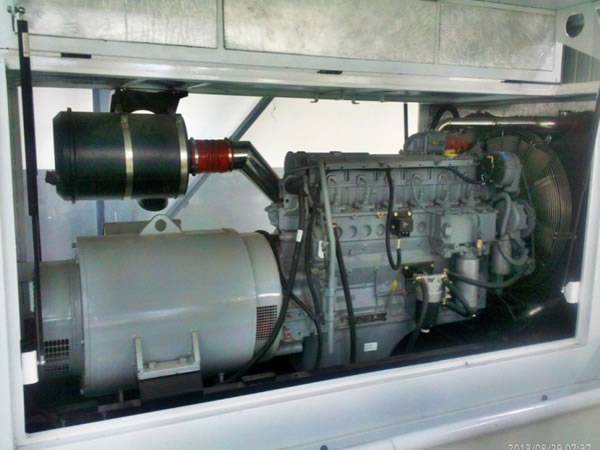

- Optional generators: LanZhou generator Set & JiangYin generator
- Optional control systems: Siemens Control System, Schneider Control System, China control system.
