Towable Passenger Stairs

Towable Passenger Stairs

This boarding truck is towed with no power source, so the operation needs to rely on manual push or traction. The need for manual thrust is small, and the maximum is 30Kg.The towable passenger stairs truck is mainly composed of chassis assembly, ladder assembly, sliding door assembly, lifting mechanism, platform assembly, tail ladder assembly, control system and so on.

According to different plane heights, we offer 3 different types of stair trucks.

Technical Specifications

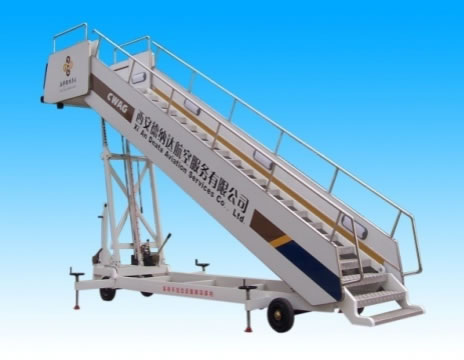

Towable Passenger Stair PST2800
Towable Passenger Stairs PST2800

HD-PST2800 towable passenger stair truck is suitable for Boeing B737-200, B737-300, B737-500, B737-800, and Airbus ARJ21 series aircrafts.

Stair Maximum Tilt Angle Boundary Dimension (Length * Width *Height) Passenger Stair Working Height Number of Steps Wheel Base Minimum Ground Clearance Channel Diameter Curb Weight Passenger Capacity Lifting Mode
30° 5540*2210*3700 mm 2400～2800 mm 13 3500 180 mm 12500 mm 1050 kg 30 Foot Pump Lifting

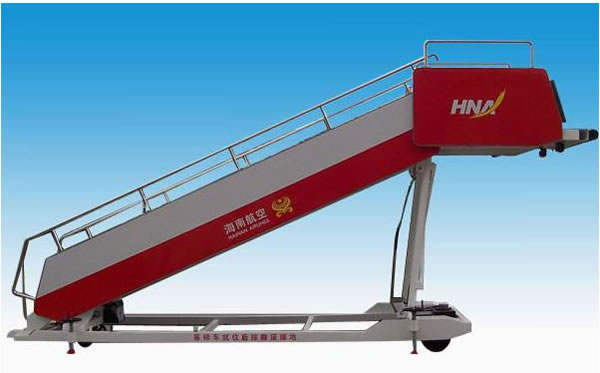

Towable Passenger Stair PST3600
Towable Passenger Stair PST3600

HD-PST3600 towable passenger stair truck is suitable for Airbus A318, A319, A320, A321, Boeing B707, B727, B737, McDonnell DC-8/40/50F, DC8-61/61F, DC8- 62/62F, DC8-63/63F, Il-18 and COMAC C919.

Stair Maximum Tilt Angle Boundary Dimension (Length * Width *Height) Passenger Stair Working Height Number of Steps Wheel Base Minimum Ground Clearance Channel Diameter Curb Weight Passenger Capacity Lifting Mode
38° 6900*2210*3540 mm 2400～3600 mm 18 4260 180 mm 14000 mm 1780 kg 35 Foot Pump Lifting

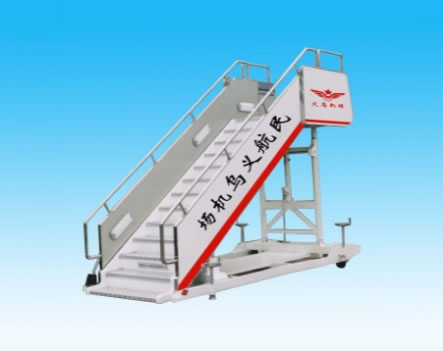

Towable Passenger Stair PST4400
Towable Passenger Stair PST3600

HD-PST4400 towable passenger stair truck is suitable for Airbus A318, A319, A320, A321, A330, A340, Boeing B707, B727, B737, McDonnell DC-8/40/50F, DC8-61/61F, DC8-62/62F, DC8-63/63F, Il-18 series passenger aircraft.

Stair Maximum Tilt Angle Boundary Dimension (Length * Width *Height) Passenger Stair Working Height Number of Steps Wheel Base Minimum Ground Clearance Channel Diameter Curb Weight Passenger Capacity Lifting Mode
38° 8300*2220*3620 mm 3200～4400 mm 21 4450 160 mm 17500 mm 2100 kg 50 Manual Pump Lifting
  • Step Size (Length * Width * Height): 300 * 1120 * (140~200) mm
  • Platform Size (Length * Width): 2000 * 1400 mm
  • Maximum Towing Speed: 20 KM/H
  • Electrical Energy: 12V battery or Solar energy
  • Optional: Canopy
Feature
  • Number of passengers allowed by ladder: 30-40 people.
  • The chassis is a thick steel plate and galvanized. Other parts are made of steel materials.
  • The towable passenger stairs truck is light weight, easy and reliable to operate, and features a flexible, stable steering process. It only needs one or two operators to operate the ladder, and it can be paired with baggage tractors.
  • It uses a pedal hydraulic pump operation or manual pump operation to lift the ladder.

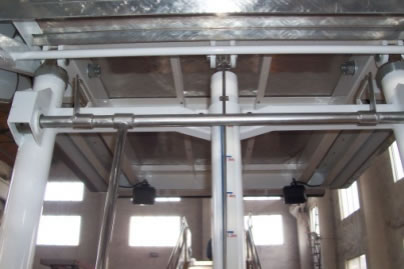

  • Safety protections: The lifting mechanism is eqfuipped with mechanical locks or safety protection.
    • Towable Passenger Stair

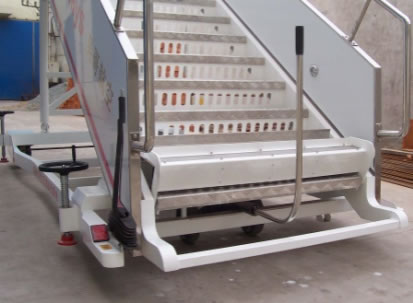

  • The supporting braces include a hand operated outrigger and a quick release stabilizer jack to manually lower a leg for support.
    • Towable Passenger Stair
  • The stair truck uses a rear brake system and the handles are installed on the both sides of the truck. It is convenient for the operators to carry out truck braking.
  • The passenger ladder has lighting device at night. It can be used for night lighting by storage battery or installing solar panels.
    • Towable Passenger Stair
