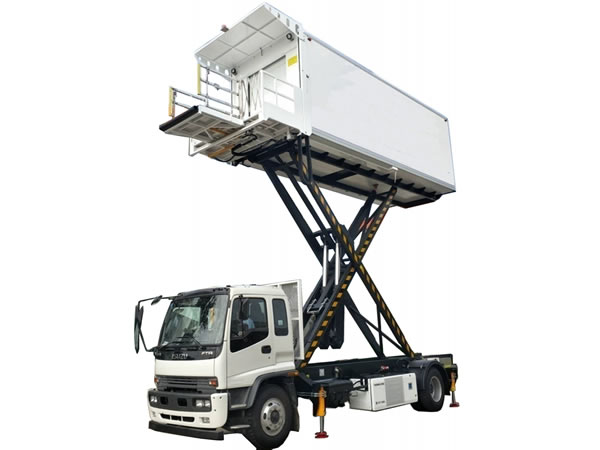

The HD-CT60 aircraft catering truck is used to transport food to the aircraft, and is suitable for use on Boeing B727, B737, B747, B757, L-1011 TriStar, McDonnell MD90, MD-11, DC10, Airbus A300, A340, A380 (one door), CONCORDE, TU-154M, TL-96-300 and other aircraft models.

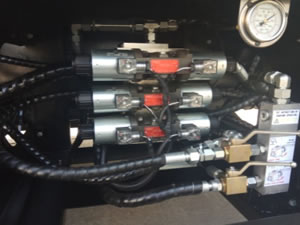

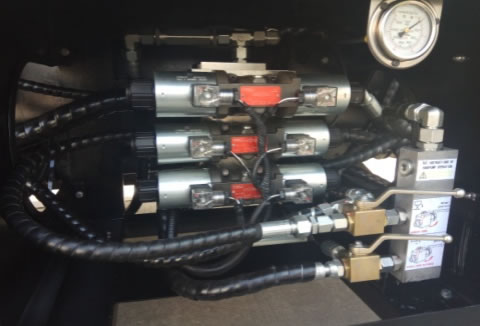

The truck is mainly composed of a chassis, lifter, thermal door, carriage, supporting feet, workbench, hydraulic system, electrical system, and refrigeration unit.
Feature of Catering TruckProject | CT60A Configuration 1 (FTR MT/EURO 4) | CT60B Configuration 2 (FVR MT/EURO 4) |
CT60C Configuration 3 (FVR MT/EURO 5) |
CT60D Configuration 4 (FVR AT/EURO 5) | |
Platform Working Height | 2720~6050mm | 2720~6050mm | 2720~6050mm | 2720~6050mm | |
Carriage Rated Load | 4000kg | 4500kg | 4500kg | 4500kg | |
Fixed Platform Rated Load | 1100kg | 1100kg | 1100kg | 1100kg | |
Mobile Platform Rated Load | 450kg | 450kg | 450kg | 450kg | |
Platform Left-to-Right Adjustment Range | 0~800mm | 0~800mm | 0~800mm | 0~800mm | |
Platform Scale Adjustment Range | 0~600mm | 0~600mm | 0~600mm | 0~600mm | |
Fixed Platform Dimension (Length *Width) | 1400×2500 mm | 1400×2500 mm | 1400×2500 mm | 1400×2500 mm | |
Mobile Platform Dimension (Length*Width) | 1100×1200 mm | 1100×1200 mm | 1100×1200 mm | 1100×1200 mm | |
Curb Weight | 14000 kg | 14000 kg | 14000 kg | 14000 kg | |
Boundary Dimension (Length *Width*Height) | 9880×2550×3800 mm | 9880×2550×3800 mm | 10200×2550×3800 mm | 10200×2550×3800 mm | |
Carriage External Dimensions (Length * Width * Height) | 7200×2500×2400 mm | 7500×2500×2400 mm | 7500×2500×2400 mm | 7500×2500×2400 mm |
Engine Manufacturer/Model | ISUZU (ChongQing) Engine Co., LTD 4HK1-TCG40 | ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL | ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL | ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL | |
Underpan) | QingLing Motor Co., LTD / QL5160XXY9QFRY | QingLing Motor Co., LTD /QL1160AQFRY | QingLing Motor Co., LTD /QL1180XQFRY | QingLing Motor Co., LTD /QL1180XQFRY | |
Gearbox) | QingLing Motor Co., LTD MLD-6Q | QingLing Motor Co., LTD MLD-6Q | QingLing Motor Co., LTD MLD-6Q | General Motors Co., LTD |
